| PCW5000 | ||
|---|---|---|
| Series | Pro | |
| Designed in | 2003 | |
| Motor/Engine | Honda GXH50 4-stroke Air-cooled 1.6 kW – 2.1 HP @ 7,000 tr/min |
|
| Powered by | Unleaded gasoline, 86 octane or higher | |
| Drive/Clutch | Direct drive (no clutch) | |
| Rope Retention System | No | |
| Drum turns when motor/engine is idling | Yes | |
| Pulling Capacity | ||
| Standard drum (single line / double line) | Ø 57 mm: 1,000 kg / 2,000 kg | |
| Optional drum (single line / double line) | Ø 85 mm: 700 kg / 1,400 kg | |
| Lifting Capacity | ||
| Standard drum (single line / double line) | Not designed for lifting – See INDUSTRIAL Series winches | |
| Optional drum (single line / double line) | — | |
| Speed | ||
| Standard drum | Ø 57 mm: 12 m/min | |
| Optional drum | Ø 85 mm: 18 m/min | |
| Weight | 16 kg | |
| Dimensions (overall) | 37.1 cm x 36.6 cm x 36.6 cm | |
| Gearbox | Aluminium alloy. Heat treated 3-stage spur gears. Mounted on ball bearings. Oil bath lubrication. | |
| Gear ratio | 110:1 | |
| Brake | Anti-reversing roller clutch bearing | |
| Rope (not included) | Low stretch double braided polyester | |
| Length | Unlimited | |
| Minimum Breaking Strength (MBS) | 2,200 kg | |
| Minimum diameter | Ø 10 mm | |
| Maximum diameter | Ø 13 mm | |
| Recommended diameter | Ø 12 mm | |
| Included | Polyester sling – 60 mm x 2 m | |
| Warranty | Once purchased, register your winch online and get 1 additional year of warranty for FREE! | |
| Private use | 5 years | |
| Commercial use | 1 year | |
| Motor/Engine | Honda International Warranty | |
| Certification(s) | CE | |

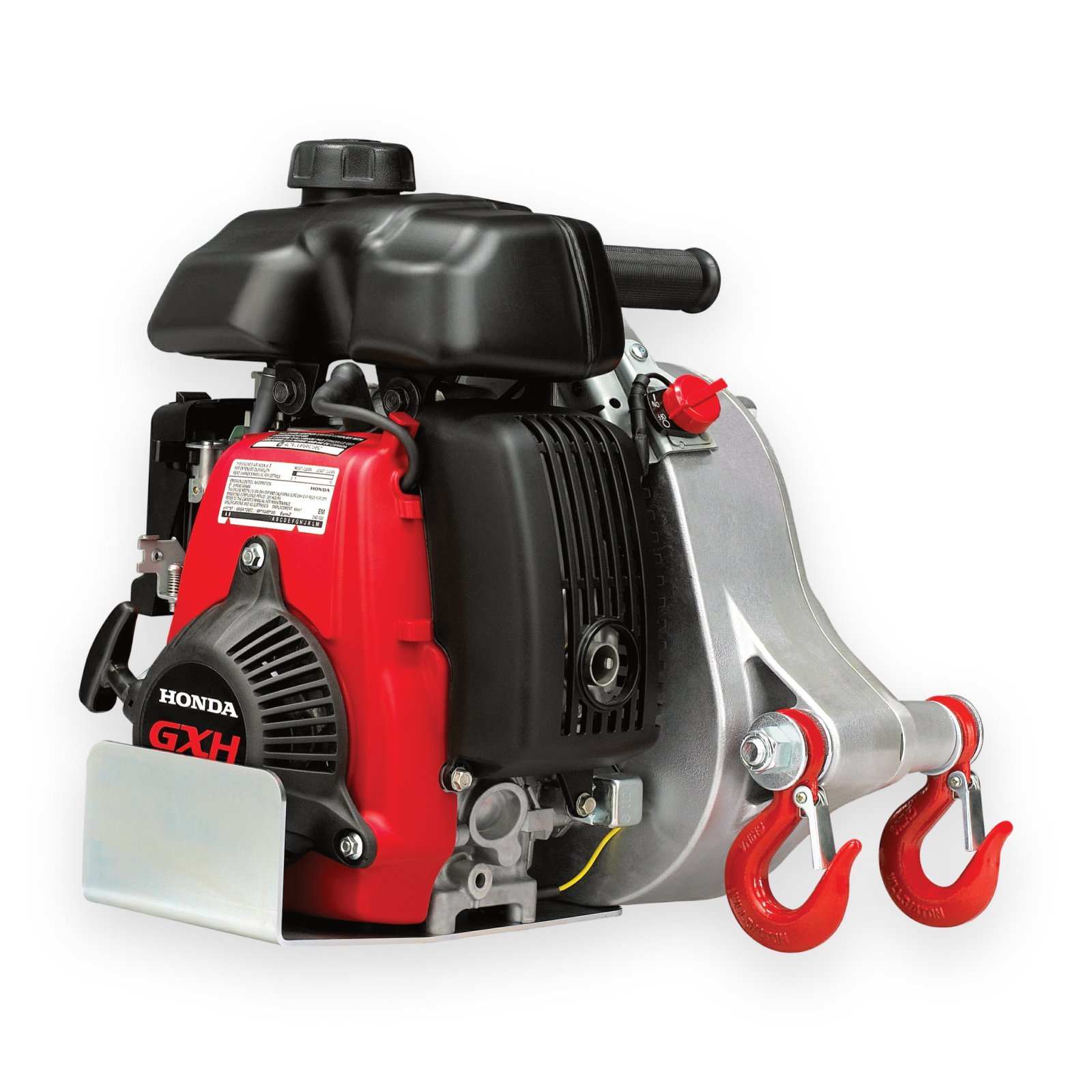

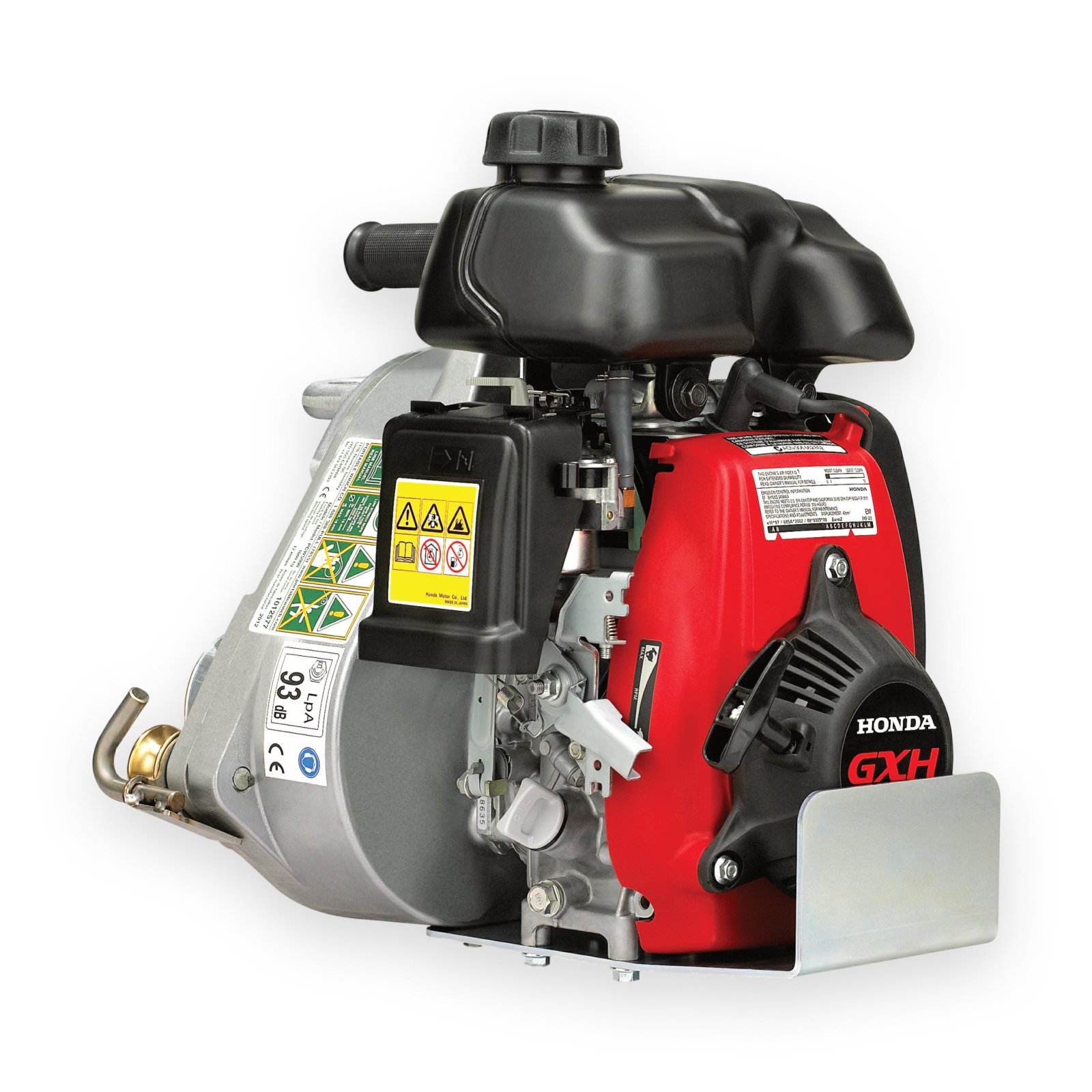

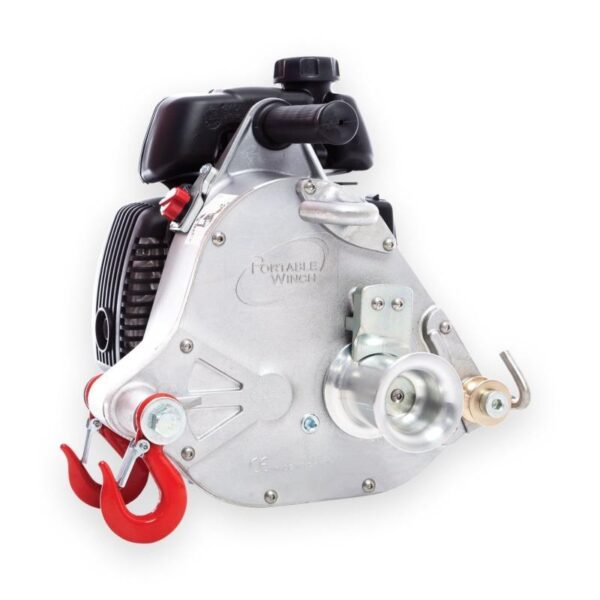

PCW5000 GAS-POWERED PULLING WINCH GXH50
$1,999.00
The original winch.

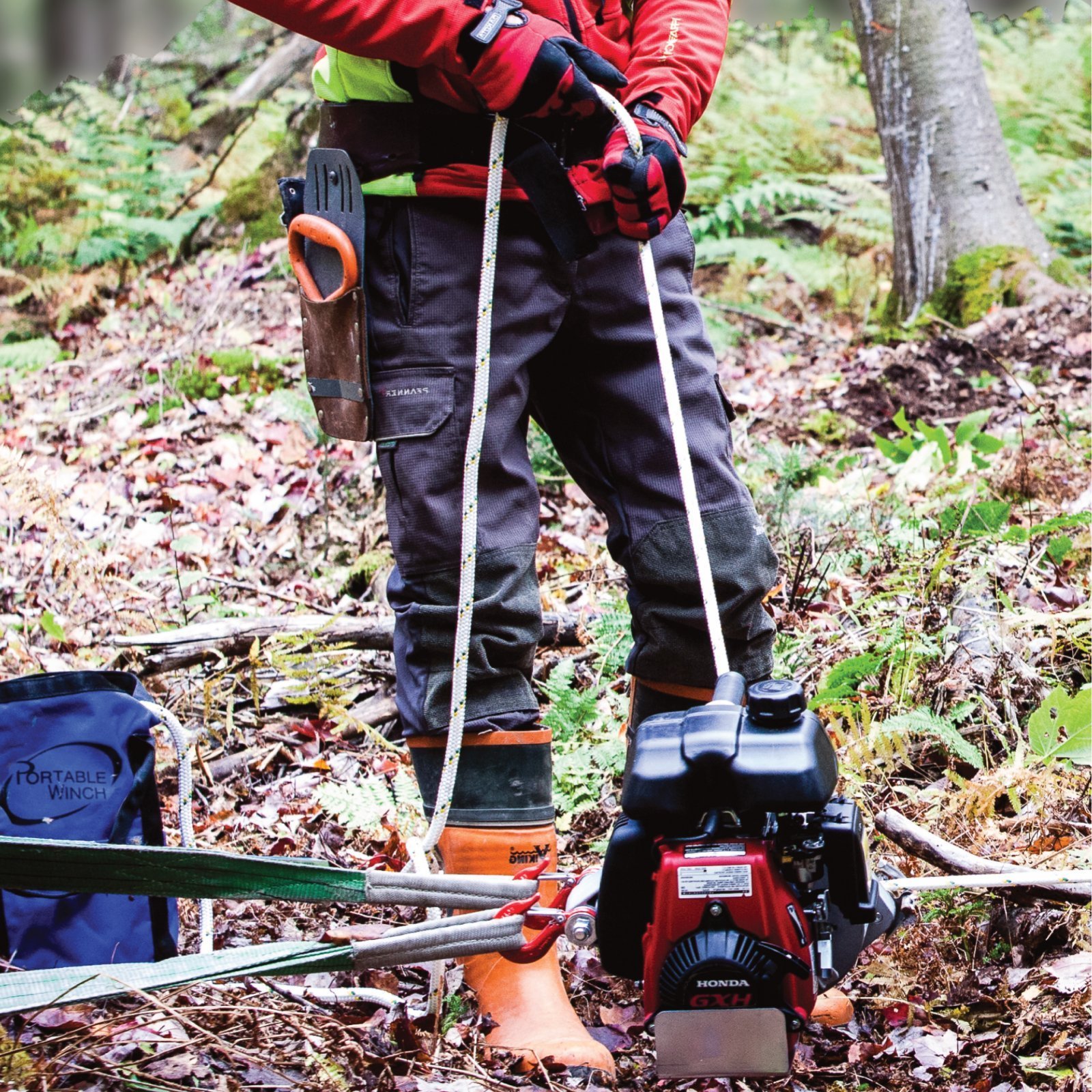

Whether it’s for pulling trees out of the woods, getting a stuck vehicle out, or any other purpose, the inexhaustible PCW5000 will be there to help you.
Design
Its robust design makes it the Portable Winch benchmark for quality and durability: ingenious products, offering durable power without compromise, anywhere. The Honda GXH50 engine mounted on this winch is an industrial grade engine that will provide performance for several hundred hours. The capstan winch concept allows users to pull loads over an unlimited length of rope, without loss of power, in a simple, effective, and safe way. In addition, the PCW5000 offers two speed options thanks to its interchangeable capstan drums. You can choose the one that will best suit your task. The 57 mm diameter drum, standard on the winch, delivers all the power with a pulling speed of 12 meters per minute. For more speed, the optional 85 mm drum (PCA-1100) will give you 50% more speed, or 18 meters per minute. A wide range of complementary accessories has been specifically designed to meet your needs.
Performance
The PCW5000 develops a remarkable pulling force of 1,000 kg without mechanical advantage. By adding a pulley system, you can go up to five times (5x) the pulling force. That means, with two double pulleys, you could pull up to 5,000 kg!
